SAGIBONDTM – ACM Panels

A refined architectural finish that delivers the warmth of wood with the performance of aluminum composite materials.

Designed for modern facades. Built to last.

SAGIBOND™ woodgrain ACM panels deliver durability, flatness, and visual consistency for exterior applications ranging from custom residences to large-scale commercial projects.

Built to Last

Engineered for exceptional durability, resisting wear, warping, rotting, and cracking—even in harsh outdoor conditions.

Effortless Maintenance

Enjoy the authentic look of wood without the upkeep. No painting, staining, or sealing required.

Safe & Sustainable

Fire-resistant and eco-conscious, made from recycled materials to support safer spaces and a greener future.

Peace of mind

Backed by a 50-year warranty, with 15 years non-prorated coverage.

SAGIBOND™ - ACM PANELS

SAGIBOND™ is SAGIPER’s architectural aluminum panel platform, developed to deliver modern facade performance with the warmth and realism of woodgrain finishes. Engineered for consistency, flatness, and durability, SAGIBOND panels are designed to support architectural freedom while meeting the practical demands of fabrication and installation.

The SAGIBOND lineup is available in three distinct panel constructions to suit a wide range of project requirements:

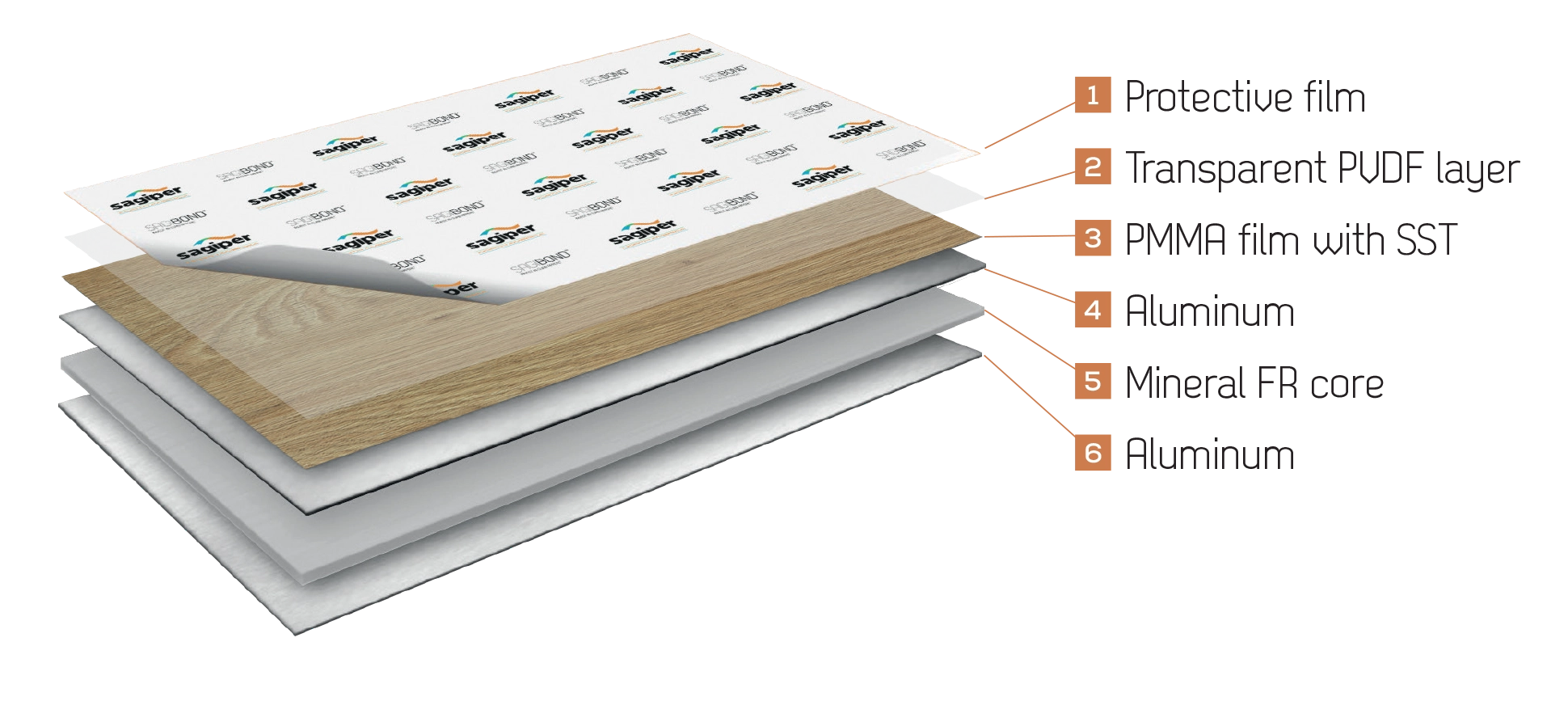

SAGIBOND™ FIREGUARD

A fire-rated aluminum composite panel engineered for applications requiring enhanced fire performance. Fireguard panels are supplied as flat sheets measuring 4 feet wide by 16 feet long, allowing fabricators the flexibility to create custom panel layouts, joint patterns, and facade designs specified by architects.

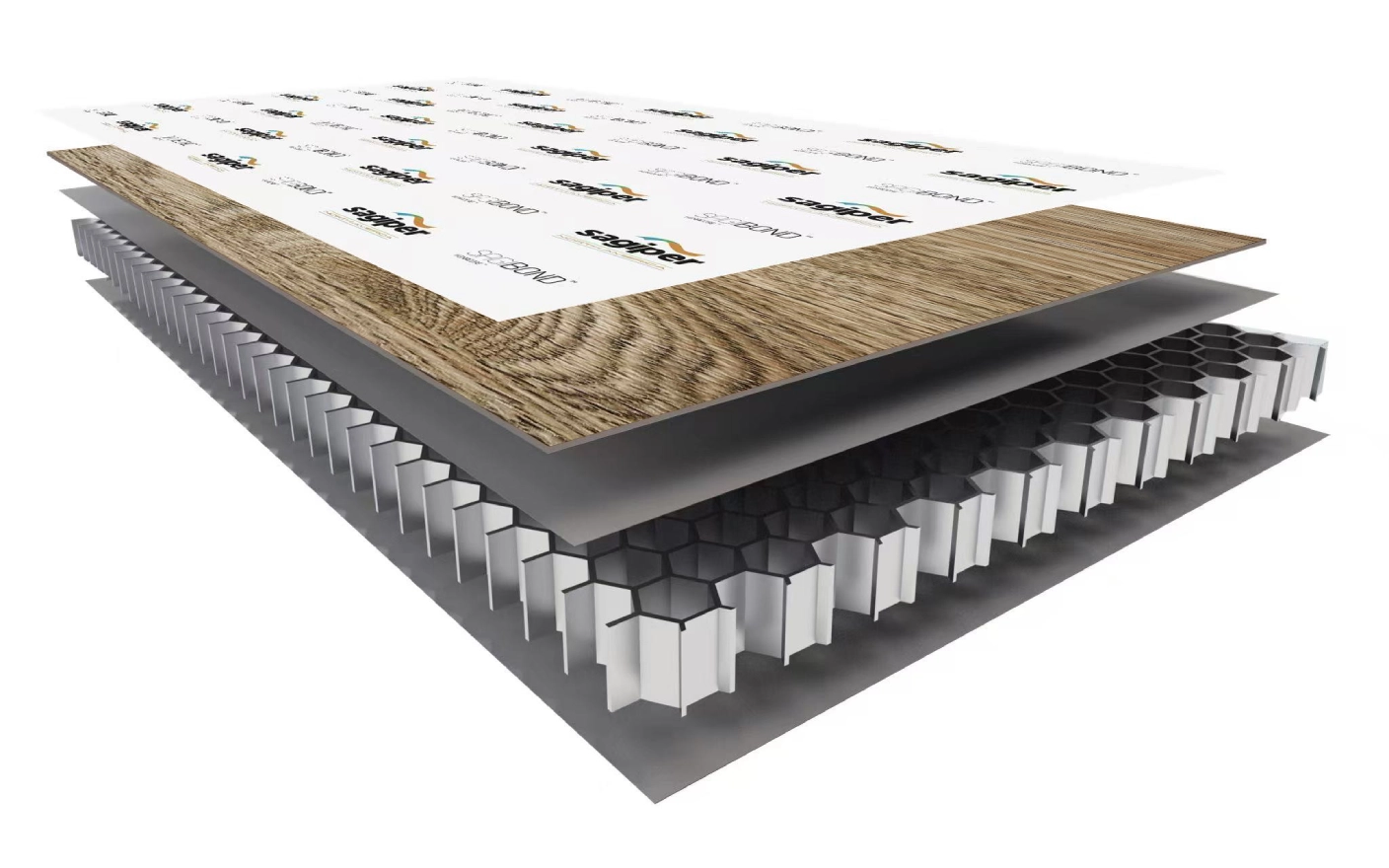

SAGIBOND™ HEXACORE

A lightweight aluminum honeycomb panel designed for superior rigidity, strength, and dimensional stability. Like Fireguard, Hexacore panels are available in 4 foot by 16 foot flat sheets, providing fabricators with maximum freedom to form, cut, and detail panels to meet architectural intent while maintaining excellent flatness.

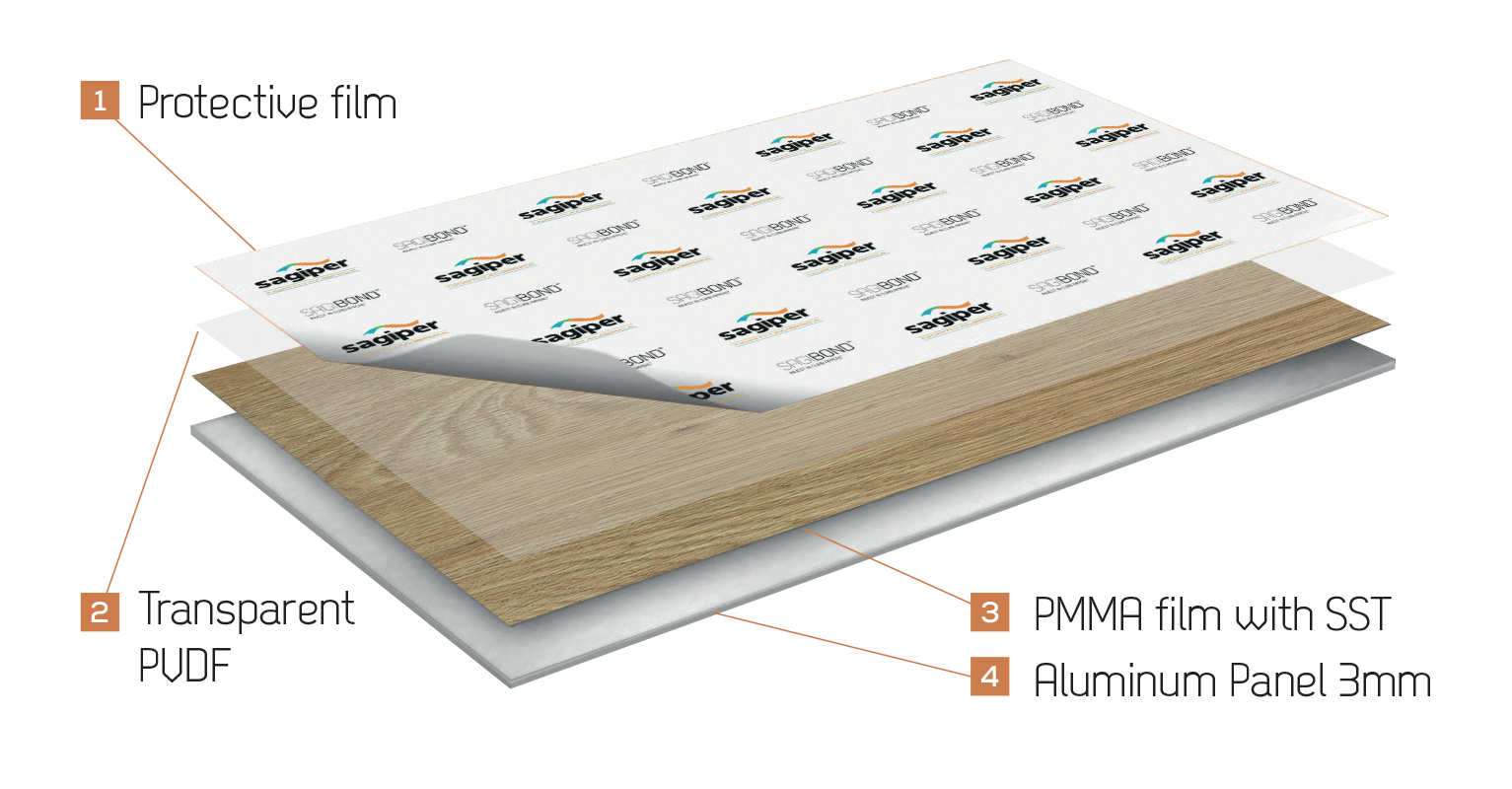

SAGIBOND™ SLIMSHIELD

A solid 3mm aluminum sheet solution offering a refined, minimalist appearance with exceptional durability. Slimshield panels are supplied in 4 foot wide sheets ranging from 6.5 feet up to 13 feet in length, making them ideal for applications requiring smaller formats or more controlled panel sizes.

All SAGIBOND panels are finished with SAGIPER’s highly realistic woodgrain films, delivering depth, texture, and color consistency that closely replicates natural wood. These finishes provide an unmatched balance of aesthetic realism and long-term performance, allowing architects to achieve the warmth of wood without the maintenance, movement, or degradation of traditional materials.

EASY INSTALLATION

Simple and fast! In the following video, we will show you everything.

TECHNOLOGIES THAT STAND THE TEST OF TIME

SOLAR SHIELD TECHNOLOGY

Built-in protection that helps keep surfaces cooler.
Solar Shield Technology (SST) reflects heat from the sun before it enters the surface. This helps reduce heat build-up and keeps profiles more stable over time, especially in darker colours.

What It Does
• Reflects heat away from the surface
• Helps profiles keep their shape
• Reduces stress on panels and trims

Why It Matters
• Dark colours stay cooler
• Less movement and warping
• Products last longer and look better over time

Best For
Dark colours • Wood-look finishes •
Sunny environments

Film Structure

Five layers. One high-performance exterior film.
SAGIPER is a highly durable exterior vinyl film engineered for long-term outdoor performance.
Overall thickness: 170–180 μm

1. UV-Protective Surface (PVDF) 
Blocks over 95% of UV radiation to prevent fading and surface degradation.

2. Clear Protective Layer (PMMA) 
Adds durability, clarity, and long-term weather resistance.

3. Design Layer 
Locks in colour and texture with consistent, high-quality finish.

4. Pigmented Base with Solar Shield Technology 
Reduces heat build-up and protects the laminated components beneath.

5.Adhesion Primer 
Ensures strong, long-lasting bonding to profiles and substrates.

FIND YOUR PERFECT FIT

SAGIBOND™ is available in a wide range of finishes — from natural wood tones to sleek metallics and custom RAL colors — designed to suit both residential and commercial projects. Every finish is engineered to blend seamlessly with its surroundings, whether in natural landscapes or urban settings.
